Voltage 24-32V 428-438MHZ 50W GaN Module Anti Drone System RF Power Amplifier Module PA Module

상품

Voltage 24-32V 428-438MHZ 50W GaN Module Anti Drone System RF Power Amplifier Module PA Module

MOQ:	1 piece
가격:	$65-98
배달 기간:	1-3 workdays
지불 방법:	D/A, D/P, T/T, Western Union, MoneyGram， Paypal
공급 능력:	50000 pcs per month

상세 정보

제품 설명

상세 정보

Place of Origin

Guangdong, China

브랜드 이름

LDSK

Customization:

Customization from 10 to 6700MHZ，10-200W

Frequency and Power:

428-438MHZ 50W

Gain:

47dBm

Voltage:

24-32V

Working Efficiency:

>60%

Size:

37.3*112*19.5mmmm

Minimum Order Quantity:

1 piece

가격:

$65-98

Delivery Time:

1-3 workdays

Payment Terms:

D/A, D/P, T/T, Western Union, MoneyGram， Paypal

Supply Ability:

50000 pcs per month

강조하다:

50W GaN Module

Anti Drone System GaN Module

50W Power Amplifier Module

제품 설명

Product Parameters

428-438MHz 50W anti drone module for anti drone system

Power and Frequnecy support Customzation form 90MHZ- 6700mhz, 10W,20W,30W, 40W, 50w,100W,150W,200W

--GaN enables high efficiency and high output. The radio frequency and monitoring technical indicators of the power amplifier module stipulate the definition of each port of the module and the shape and structure of the module.

--The power amplifier uses domestic core key components and can operate normally at temperatures of -10~+55°C.

--This document stipulates the radio frequency and monitoring technical indicators of the 428-438MHZ 50W power amplifier module, the definition of each port of the module, the appearance and structure of the module, etc.

--This document applies to all aspects of product design, verification, production and quality inspection of the 428-438MHz 50W power amplifier module/Anti drone module.

Item name	Technical parameters
Working frequency	428-438MHz (Support customization from 10 to 6700MHZ )
Power	50W (Support customization from 10W to 200MHZ )
Supply Voltage	DC 24-32V
Max Output Power	47 dBm
Working Efficiency	≥60%
Passband Riplpe	≤2dB
Operating Temperature	-10~+55ºC
Power supply requirements	≥3.7A
RF Connector	SMA
Size	37.311219.5mm (Excluding SMA)
Weight	186g
Connect line red	DC28-30V
Connect line black	GND
Connect line white	ENABLE

Product Description

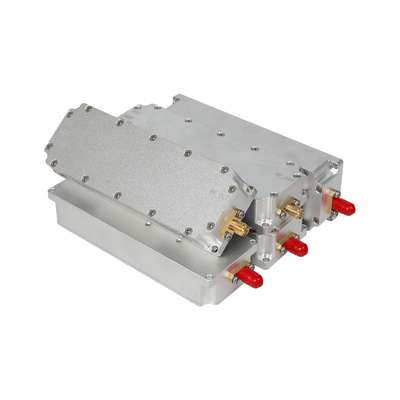

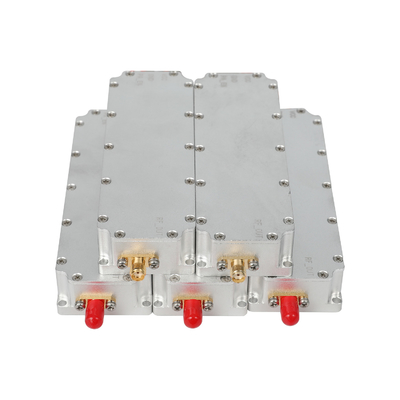

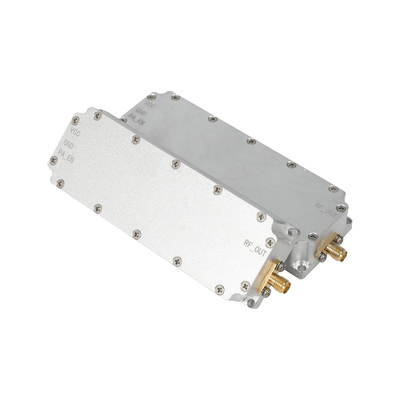

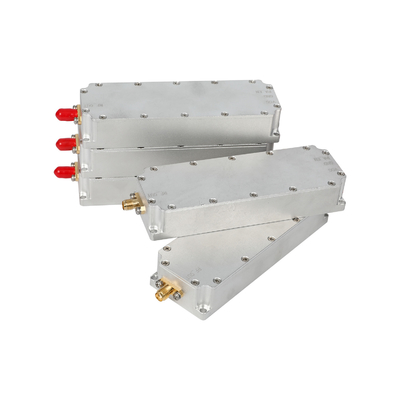

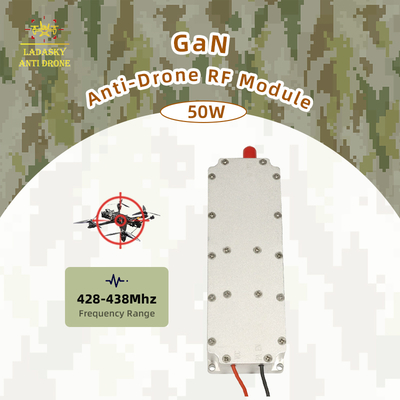

Voltage 24-32V 428-438MHZ 50W GaN Module Anti Drone System RF Power Amplifier Module PA Module 0

Voltage 24-32V 428-438MHZ 50W GaN Module Anti Drone System RF Power Amplifier Module PA Module 1

Voltage 24-32V 428-438MHZ 50W GaN Module Anti Drone System RF Power Amplifier Module PA Module 2

Voltage 24-32V 428-438MHZ 50W GaN Module Anti Drone System RF Power Amplifier Module PA Module 3

Voltage 24-32V 428-438MHZ 50W GaN Module Anti Drone System RF Power Amplifier Module PA Module 4

Voltage 24-32V 428-438MHZ 50W GaN Module Anti Drone System RF Power Amplifier Module PA Module 5

Lead time

Quantity(PCS)	<100pcs	<500	500-1000	>1000
Lead time(Days)	3	3-5	7-12	To be negotiated

Customization

Item	Logo	Frequency	Power	Packing
MOQ(PCS)	1	1	1	1

Company profile

Voltage 24-32V 428-438MHZ 50W GaN Module Anti Drone System RF Power Amplifier Module PA Module 6

Shenzhen Ladasky Technology Co., Ltd. is a national high-tech enterprise focusing on core technologies for counter-UAV systems/anti drone systems. We specialize in RF sensing, signal processing, and active jamming systems. Our product portfolio covers detection, jamming, and GNSS spoofing modules.
Ladasky is committed to delivering precise, efficient, and intelligent low-altitude defense solutions. Our systems have been widely deployed in government agencies, law enforcement, and critical infrastructure. We are driven by innovation and dedicated to building industry-leading counter-drone technology platforms.

Packing and Delivery

Selling Units:	Single item
Single package size:	20X10X5 cm
Single gross weight:	0.2kg
Package Type:	Each piece is individually packed into a bag and then packed into a carton.

FAQ

1.Why Choose us?
We have professional knowledge, sincere service, patient reply, and excellent team. Can give you a comfortable buying experience.

2.What is the process of placing an order?
First, you send products you like.
Second, we send information details and quotations.
Third, you can consult any questions about our products.
Fourth, confirm the order, we will send PI, payment link.
Fifth, after the goods are packaged, we will send pictures to confirm the products, and send you the express tracking number.
Sixth, after receiving the goods, you are welcome to give us product evaluations.

3. How to contact us?
amber@ladaskytech.com
