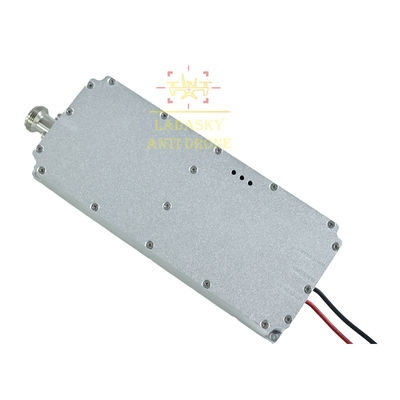

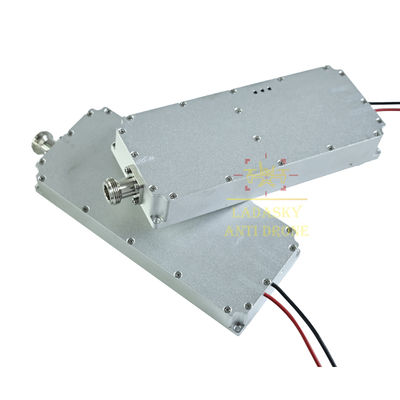

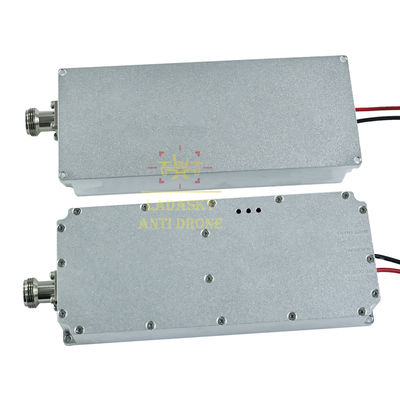

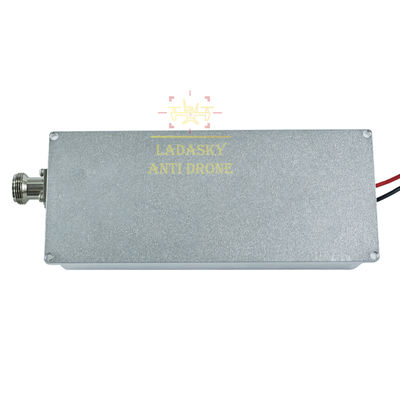

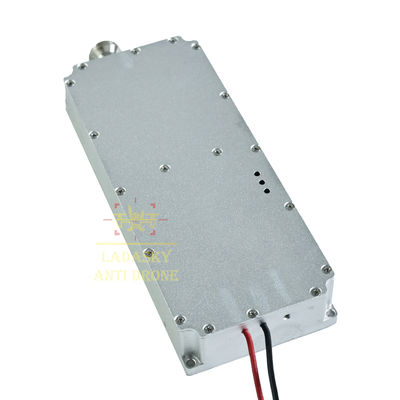

2000-2700MHz 100W GaN RF Power Amplifier with Signal Source

상품

2000-2700MHz 100W GaN RF Power Amplifier with Signal Source

MOQ:	1
배달 기간:	1-3 workdays
지불 방법:	D/A,D/P,T/T,Western Union,MoneyGram,Paypal
공급 능력:	50000 pcs per month

상세 정보

제품 설명

상세 정보

Place of Origin

China

브랜드 이름

Guangdong, China

Model Number

LDK-TZ-KGN-100W

Frequency And Power:

2000–2700MHz 100W

Operating Voltage:

24-32V

Operating Ambient Temperature:

-40～+55℃

Size:

156.5 × 64.7 × 24.5mm

Highlight:

FPV Anti-Drone Module, 100W Anti-Drone Module, DJI Anti-Drone Module

Minimum Order Quantity:

Delivery Time:

1-3 workdays

Payment Terms:

D/A,D/P,T/T,Western Union,MoneyGram,Paypal

Supply Ability:

50000 pcs per month

강조하다:

100W GaN RF power amplifier

2000-2700MHz RF amplifier with signal source

GaN module power amplifier with warranty

제품 설명

2000–2700MHz 100W GaN RF Power Amplifier with Signal Source

Frequency And Power	2000–2700MHz 100W
Operating Voltage	24-32V
Operating Ambient Temperature	-40～+55℃
Size	156.5 × 64.7 × 24.5mm
Highlight	FPV Anti-Drone Module, 100W Anti-Drone Module, DJI Anti-Drone Module

Product Description

High Power GaN RF Power Amplifier 100W with Signal Source | 2000 -2700MHz Narrowband Module for Industrial Applications

The 2000 -2700MHz 100W GaN RF Power Amplifier Module with Signal Source delivers high output power, stable performance, and excellent efficiency for narrowband RF applications. Designed with advanced Gallium Nitride (GaN) technology, it ensures low signal loss, high gain, and strong thermal stability in demanding operating environments.

This module includes a built-in noise source, integrated DC-DC converter, and high-reliability metal housing with optimized matching networks for enhanced durability. Operating in a wide voltage range of 24 -32V (typical 28V), it achieves 44% efficiency while maintaining consistent performance from -40℃ to +55℃.

Its compact size, N-Female RF output connector, and flexible cooling options make it easy to integrate into various industrial RF systems, research projects, and communication testing platforms.

Applications include:

Industrial RF transmission systems
Wireless communication testing
Data signal generation and processing
Laboratory and R&D RF experiments

Product Specifications

Parameter	Specification	Unit	Remarks
Frequency Range	2000-2700	MHz	Built-in noise source
Working Voltage	24-32	V	Typical 28V, built-in DC-DC converter
Max Output Power	50	dBm	≤8.1A
Power Supply Requirement	≥10	A	-
Power Amplifier Efficiency	44	%	-
Input Port VSWR	≤2	-	-
Operating Temperature	-40 to +55	℃	-
Power Stability	1.5	dB	-20℃ to +75℃
Power Supply Connector	Cable or Feedthrough Capacitor	-	Red for positive, black for negative
RF Output Connector	N-F	-	Female
Dimensions	156.5 × 64.7 × 24.5	mm	Excluding connectors
Mounting Hole Size	151.5 × 59.4	mm	M3 × 10
Cooling Requirement	Forced air or conductive heat sink	-	-
Housing Material	Metal	-	High reliability

Product Pictures

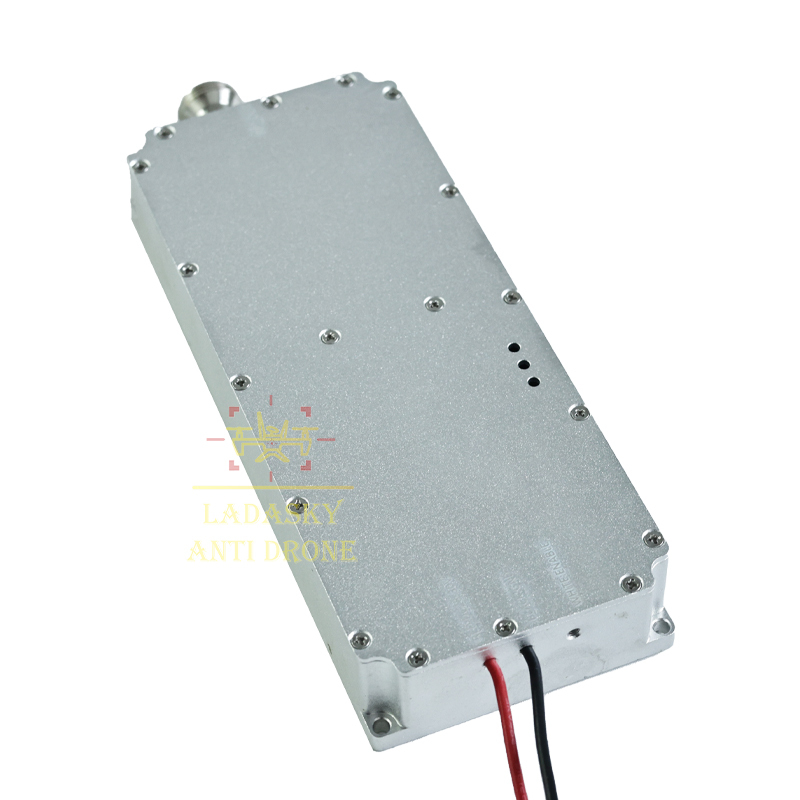

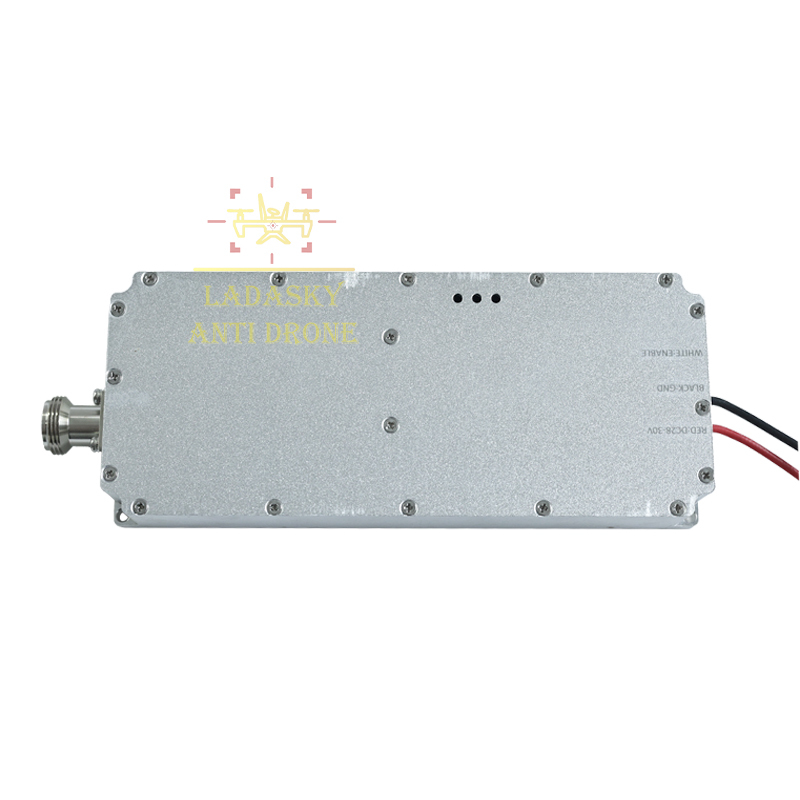

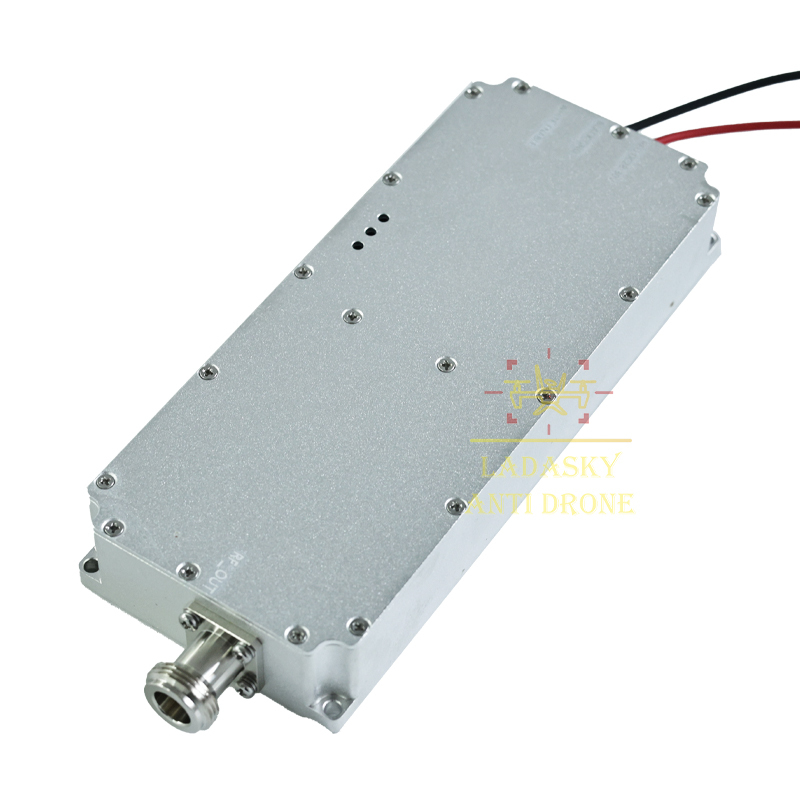

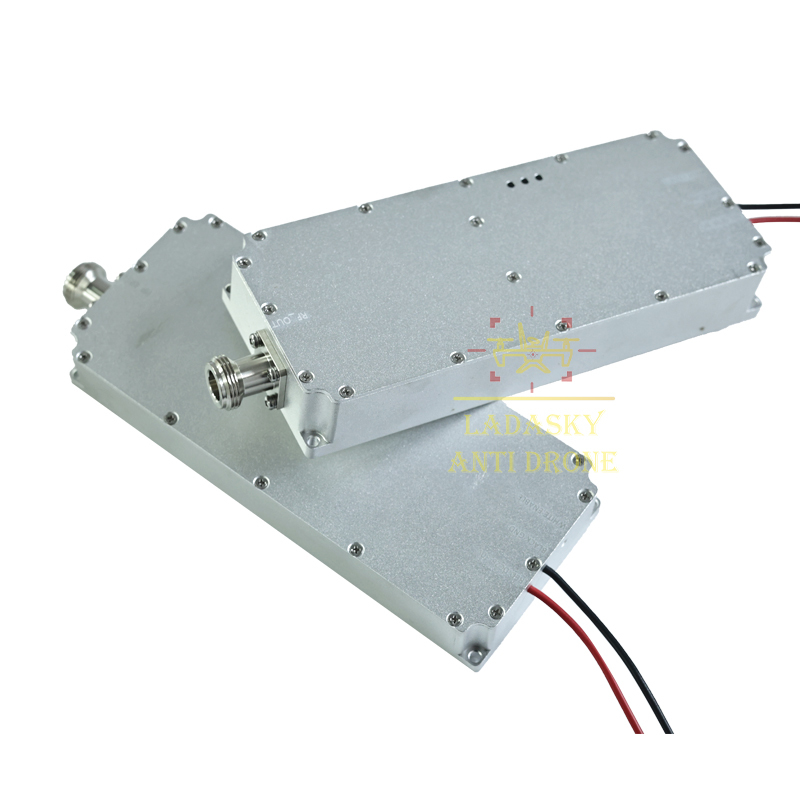

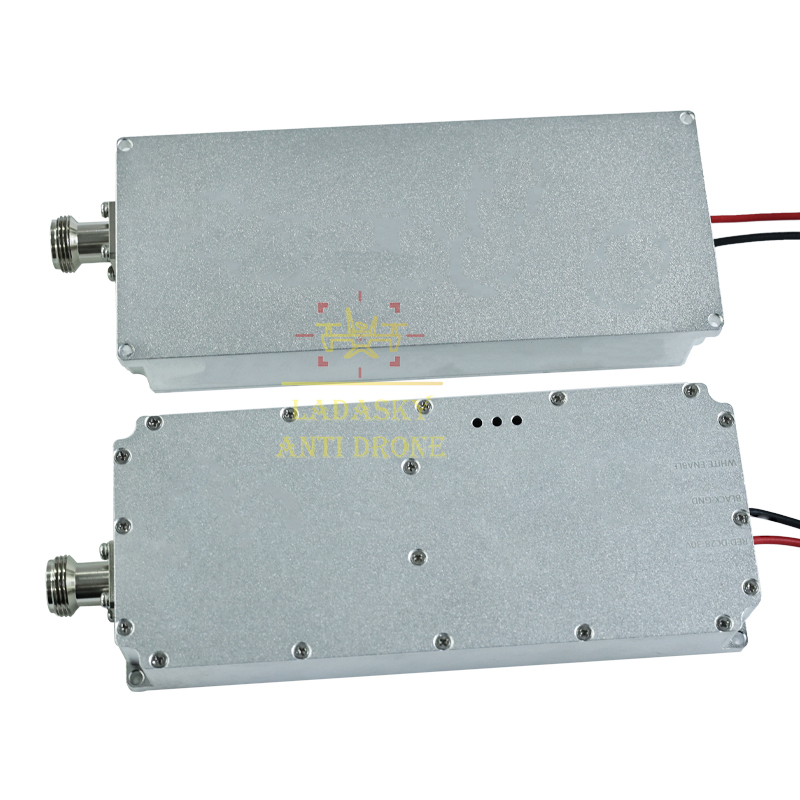

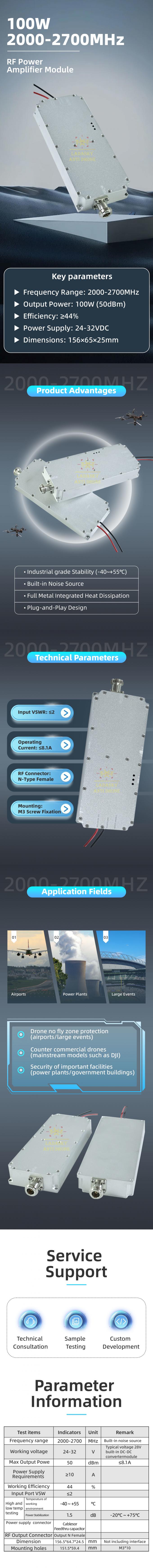

2000–2700MHz 100W GaN RF Power Amplifier Module

Lead Time

Quantity(PCS)	<100pcs	<500	500-1000	>1000
Lead time(Days)	3	3-5	7-12	To be negotiated

Customization

Item	Logo	Frequency	Power	Packing
MOQ(PCS)	1	1	1	1

Company Profile

Shenzhen Ladasky Technology Co., Ltd. is a national high-tech enterprise specializing in advanced technologies for UAV defense and low-altitude security systems. We focus on RF sensing, signal analysis, and active interference solutions. Our product portfolio includes UAV detection modules, RF suppression units, and navigation signal simulation systems.

Ladasky is committed to delivering precise, efficient, and intelligent low-altitude protection solutions. Our systems have been widely applied in government agencies, public security, and critical infrastructure protection. Driven by innovation, we are dedicated to building industry-leading UAV control and management technology platforms.

Packing and Delivery

Selling Units:	Single item
Single package size:	20X10X5 cm
Single gross weight:	0.2kg
Package Type:	Each piece is individually packed into a bag and then packed into a carton.

FAQ

1. Why Choose us?

We have professional knowledge, sincere service, patient reply, and excellent team. Can give you a comfortable buying experience.

2. What is the process of placing an order?

First, you send products you like.
Second, we send information details and quotations.
Third, you can consult any questions about our products.
Fourth, confirm the order, we will send PI, payment link.
Fifth, after the goods are packaged, we will send pictures to confirm the products, and send you the express tracking number.
Sixth, after receiving the goods, you are welcome to give us product evaluations.

3. How to contact us?
