| MOQ: | 1 |
| 배달 기간: | 1-3 근무일 |
| 지불 방법: | D/A, D/P, T/T, Western Union, MoneyGram, PayPal |
| 공급 능력: | 한 달에 50000 PC |

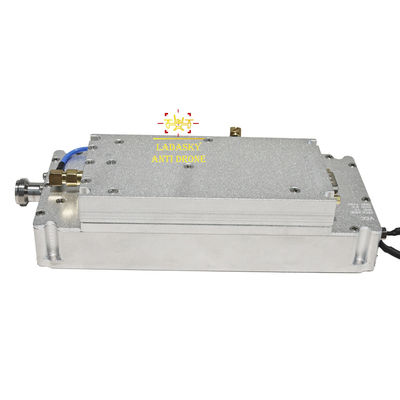

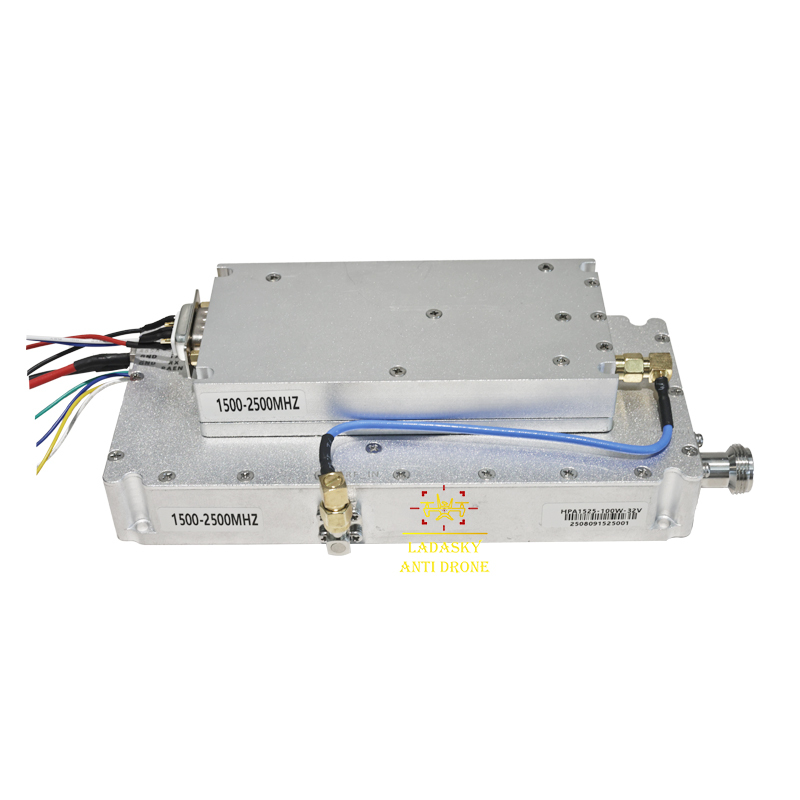

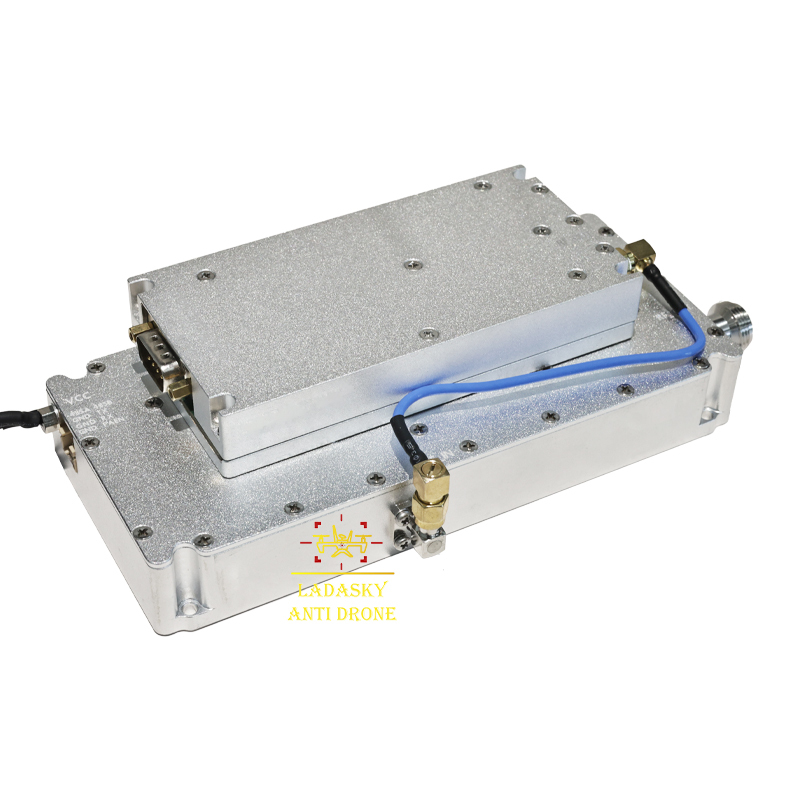

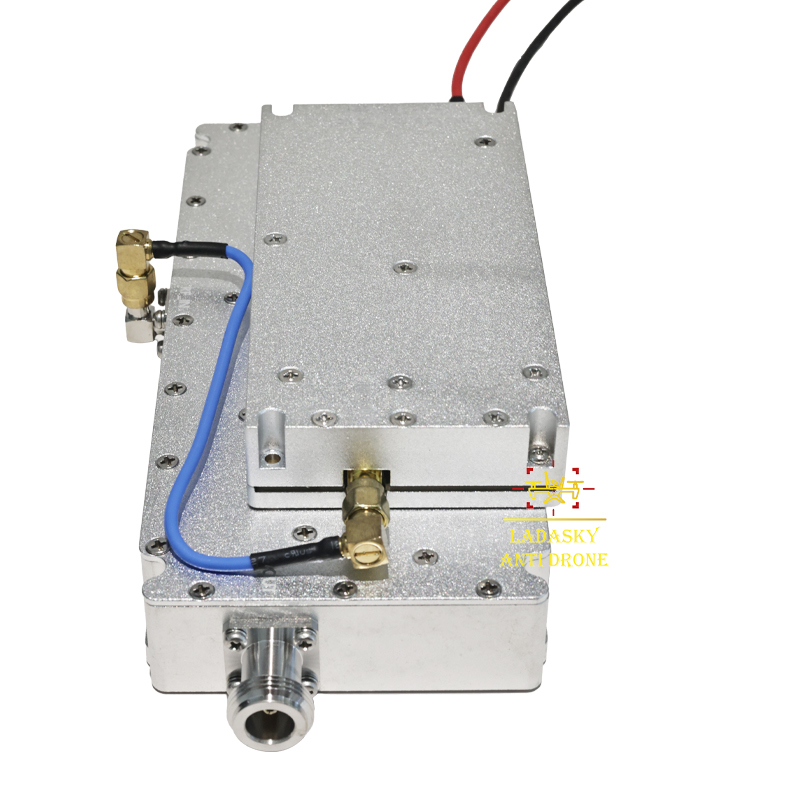

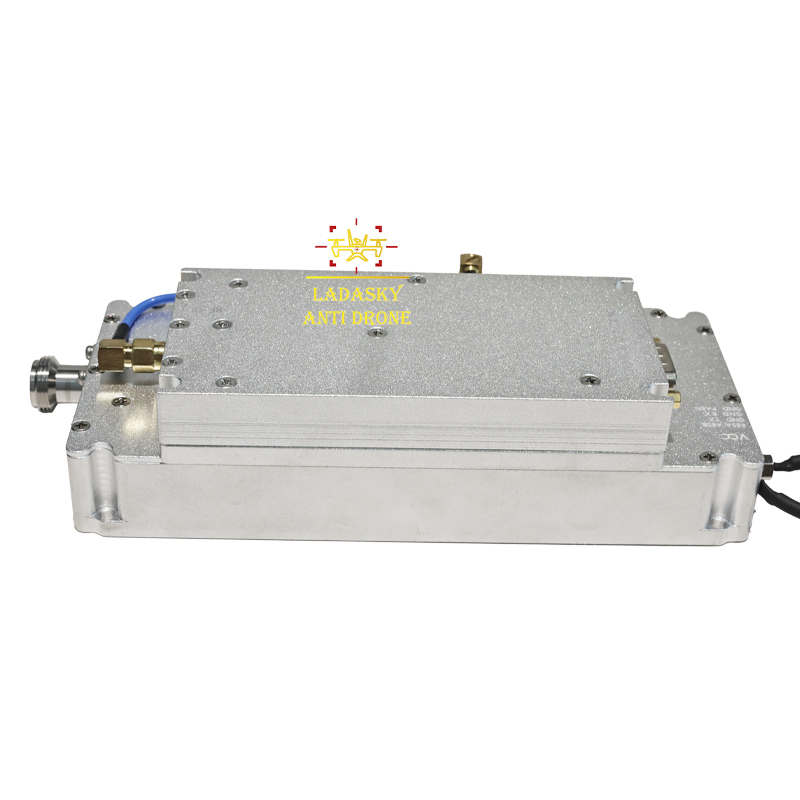

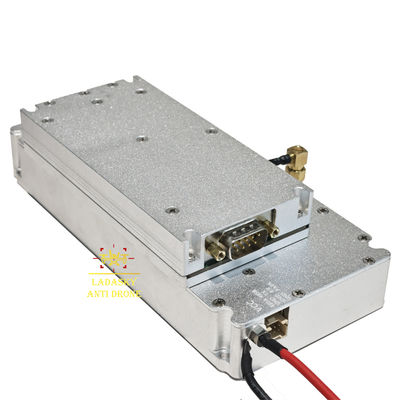

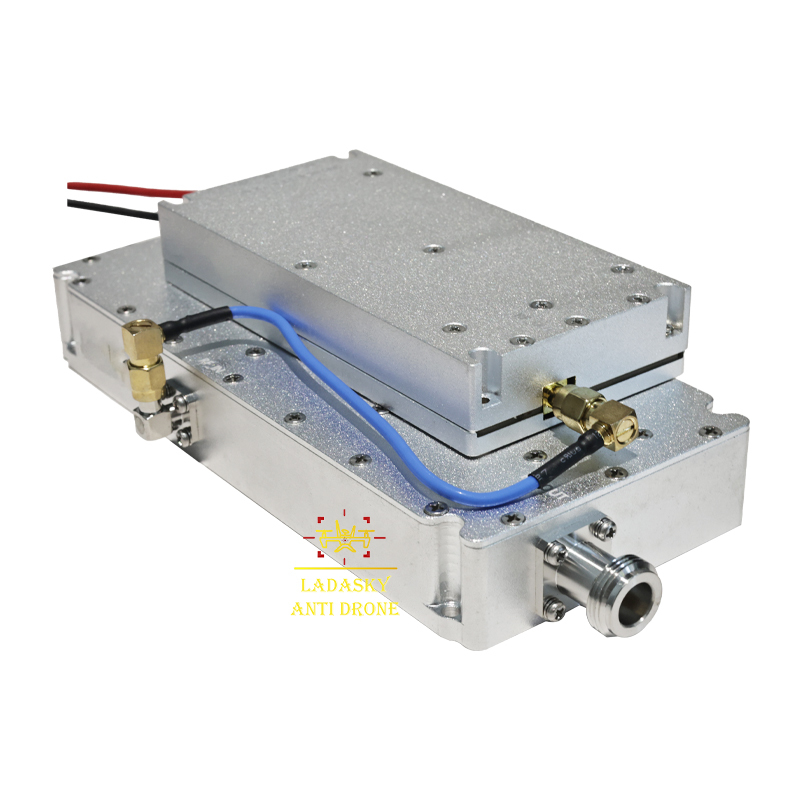

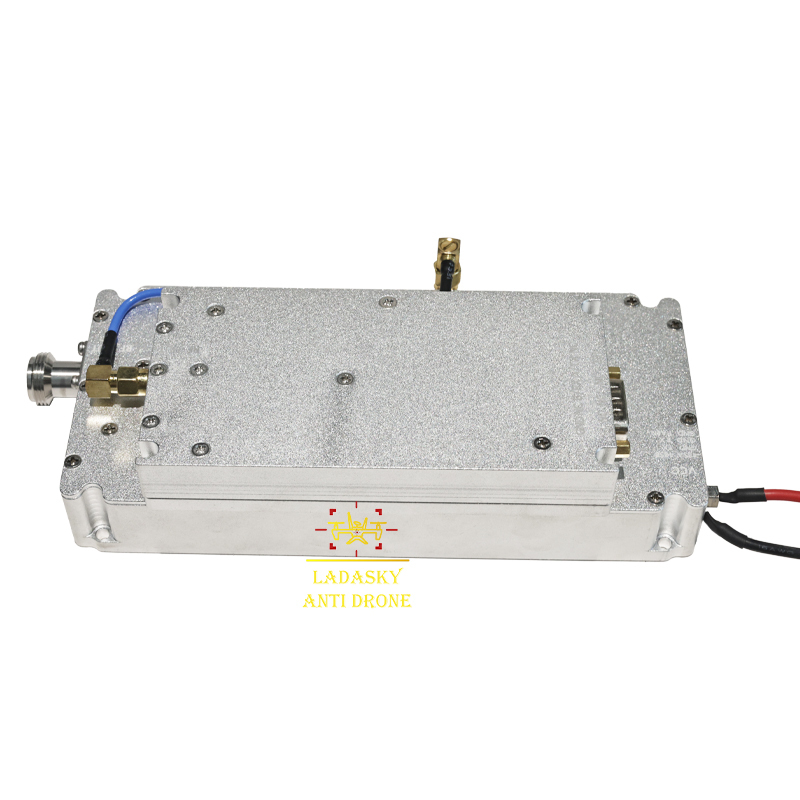

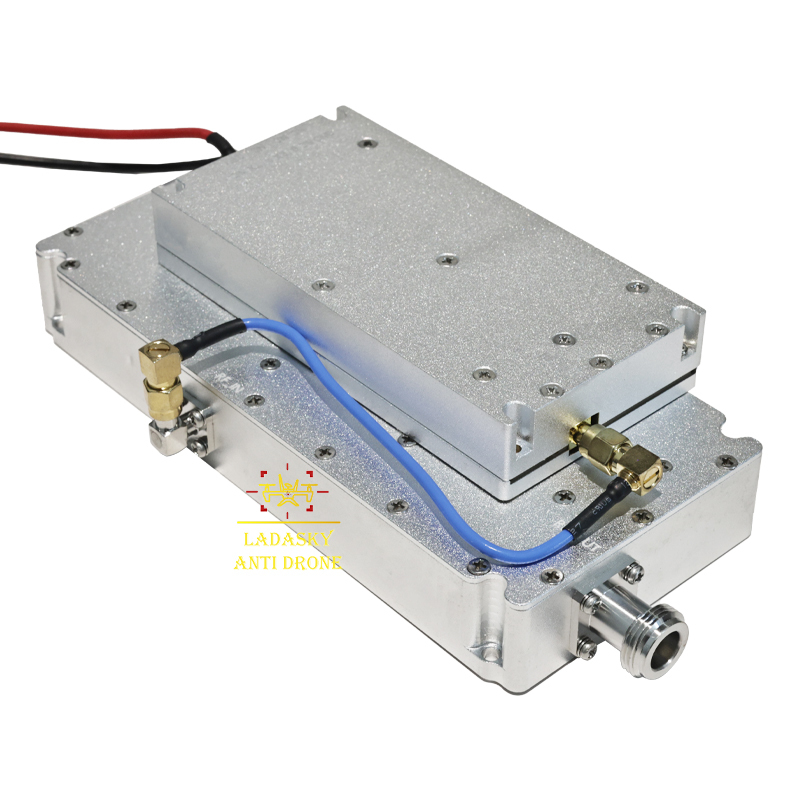

This GaN power amplifier module series utilizes advanced gallium nitride technology to deliver high efficiency, high gain, wide bandwidth, and excellent thermal stability. The compact module features low temperature start-up, supports multi-band coverage and multi-power level output, with strong compatibility for easy integration into various terminal devices.
With a wide operating voltage range and housed in a high-reliability metal package with optimized matching networks and thermal management, this module ensures stable performance in harsh environments, providing a robust solution for high-performance RF power amplification needs.

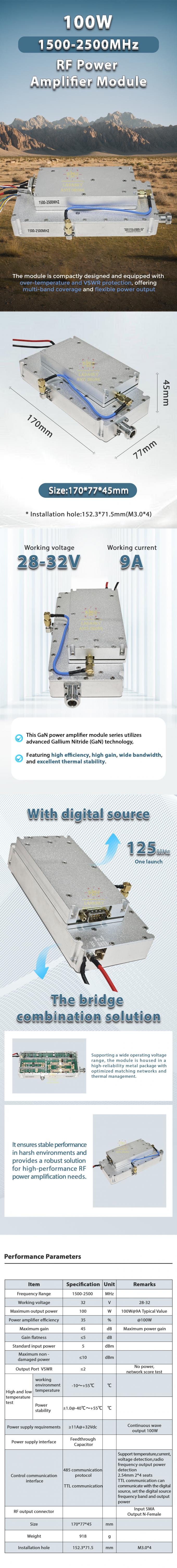

| Item | Specification | Unit | Remarks |
|---|---|---|---|
| Frequency Range | 1500-2500 | MHz | |
| Working voltage | 32 | V | 28-32 |
| Maximum output power | 100 | W | 100W@9A Typical Value |
| Power amplifier efficiency | 35 | % | @100W |
| Maximum gain | 45 | dB | Maximum power gain |
| Gain flatness | ≤5 | dB | |
| Standard input power | 5 | dBm | |
| Output Port VSWR | ≤2 | No power, network score test | |
| High and low temperature test | -10～+55℃ | ℃ | |
| Power stability | ±1.0@-40℃～+55℃ | dB | |
| Power supply requirements | ≥11A@+32V DC | Continuous wave output 100W | |
| Control communication interface | 485 communication protocol TTL communication | Support temperature, current, voltage detection, radio frequency output power detection | |
| RF output connector | Input SMA Output N-Female | ||

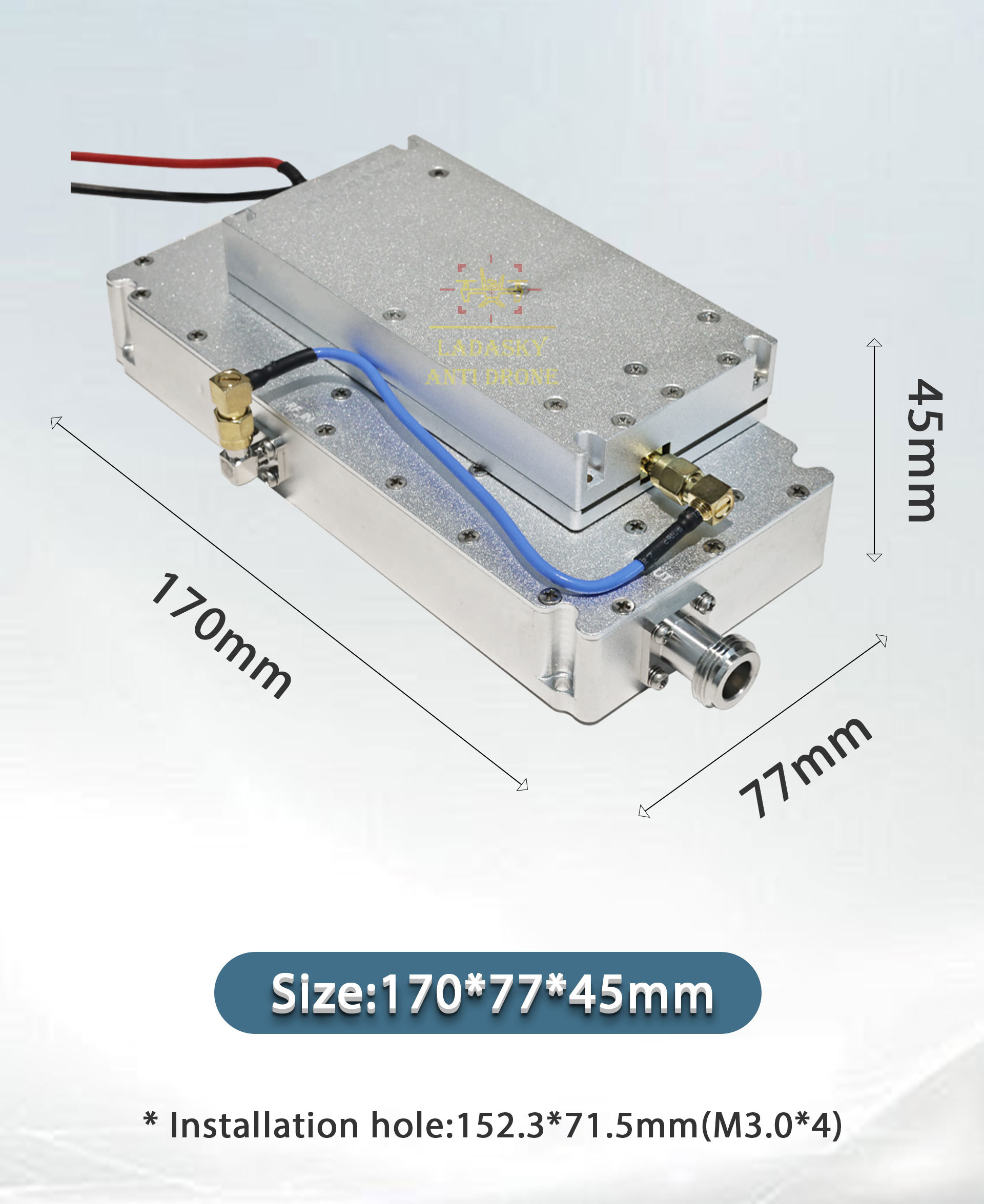

| Size | 170*77*24.5 | mm | |
| Weight | 750 | g |
| Quantity (PCS) | <100pcs | <500 | 500-1000 | >1000 |
|---|---|---|---|---|
| Lead time (Days) | 3 | 3-5 | 7-12 | To be negotiated |
We offer customization for logo, frequency, power, and packing with MOQ of just 1 piece.
We are a national high-tech enterprise specializing in advanced technologies for UAV defense and low-altitude security systems. Our expertise includes RF sensing, signal analysis, and active interference solutions. Our product portfolio includes UAV detection modules, RF suppression units, and navigation signal simulation systems.
Committed to delivering precise, efficient, and intelligent low-altitude protection solutions, our systems have been widely applied in government agencies, public security, and critical infrastructure protection. Driven by innovation, we are dedicated to building industry-leading UAV control and management technology platforms.
Each unit is individually packed into a bag and then packed into a carton:
We offer professional knowledge, sincere service, patient replies, and an excellent team to ensure a comfortable buying experience.
Email: emma@ladaskytech.com
|
|
