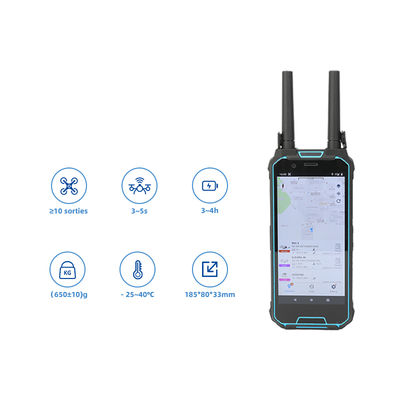

Portable UAV Detection Device with 6-inch Touch Screen 3-4 Hours Operation and Real-Time Detection for 1-2km Range
| 원래 장소 | 광동, 중국 |
|---|---|
| 브랜드 이름 | LDSK |
| 모델 번호 | LDSKL02 |
| 최소 주문 수량 | 1 |
| 가격 | $3850 |
| 배달 시간 | 1 일 |
| 지불 조건 | D/A, D/P, T/T, Western Union, MoneyGram, PayPal |
| 공급 능력 | 한 달에 5000pc |
무료 샘플과 쿠폰을 받으려면 연락하세요.
왓츠앱:0086 18588475571
웨이 채팅: 0086 18588475571
스카이프: sales10@aixton.com
궁금한 점이 있으시면 24시간 온라인 도움을 제공합니다.
x제품 상세 정보
| 감지 주파수 대역 | 100MHz ～ 6GHz | 감지 반경 | 1.5 ~ 2km (도시 환경) |
|---|---|---|---|
| 응답 시간 | 3 ~ 5s | 지구력의 시간 | 3 ~ 4H |
| 가장 밝은 부분 | 6000MHz 방지 드론 감지 장치, 웨어러블 드론 감지 장치 | ||
| 강조하다 | 6-inch Touch Screen Portable UAV Detection Device,3-4 Hours Operation Handheld Drone Detector,Real-Time Detection Anti-Drone Detection System |
||
제품 설명
1–2KM Detection Handheld Drone Detection & Positioning System 100MHz–6GHz Full-Band Coverage
Product Description
The LDSKL02 Portable UAV Detection and Positioning Device is an advanced, single-operator handheld solution that integrates spectrum detection, protocol analysis, Remote ID identification, and trajectory tracking in one compact system. It provides real-time detection, early warning, and precise positioning of both UAVs and their pilots, making it ideal for security, patrol, and critical infrastructure protection.
With a detection frequency range of 100MHz -6GHz, the TTSKL02 can identify common drone models such as DJI, Dow Tong, FPV racing drones, WiFi-based UAVs, and more. It supports passive detection to avoid electromagnetic interference, offers 1.5 -2km detection in urban areas (up to 3km in open areas), and delivers accurate UAV/pilot navigation via an integrated map interface.
Designed for field portability, it weighs only 650g, features a 6-inch touch screen, supports 3 -4 hours of operation on a single charge, and provides visual flight data analysis for post-event investigation. Optional network intercom enables device-to-device communication when connected to a wireless network.
Applications include:
- Event security and public safety
- Border and perimeter monitoring
- Airport and restricted area protection
- Industrial facility security patrols
Product Specifications
| Category | Parameter | Specification | Remarks |
|---|---|---|---|
| Performance | Detection Frequency Band | 100MHz-6GHz | - |
| Detection Radius | 1.5-2km (urban) / 2-3km (open) | - | |
| Response Time | 3-5s | - | |
| Positioning Range | 1-2km (urban) / 2-3km (open) | - | |
| Simultaneous Detections | ≥10 UAVs | - | |
| Endurance Time | 3-4h | - | |
| Mechanical | Host Dimensions | 185×80×33mm ±5mm | - |
| Mechanical | Weight | 650±10g | Without antenna |
| Electrical | Battery Capacity | 8000mAh | Built-in lithium battery |
| Electrical | Operating Time | 4-6h | Screen brightness 20%, 25℃ |
| Electrical | Charging Time | ~3h | With original charger |
| Environmental | Operating Temp | -25℃ to +40℃ | - |
| Environmental | Storage Temp | -35℃ to +40℃ | - |
| Display | Screen Size | 6 inches | - |
| Display | Resolution | 1080×2160 pixels | - |
| Storage | Internal Storage | 8GB | - |
| Storage | Memory | 256GB | - |
| System | OS | Android 12 | - |
| System | Network Support | Online & offline modes | - |

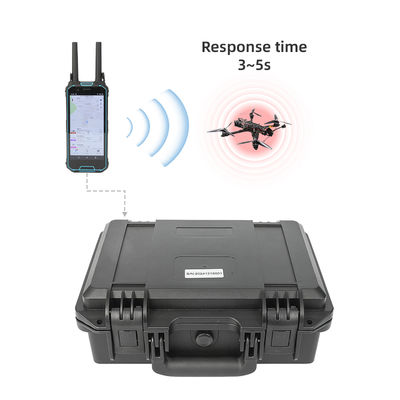

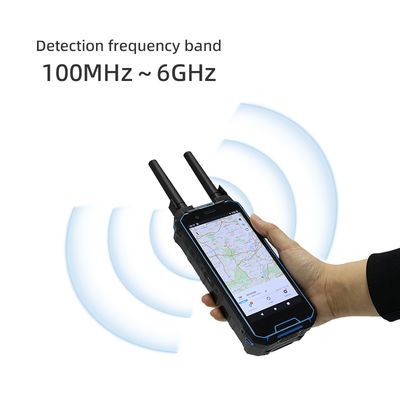

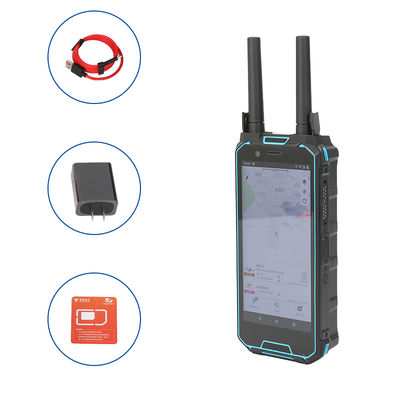

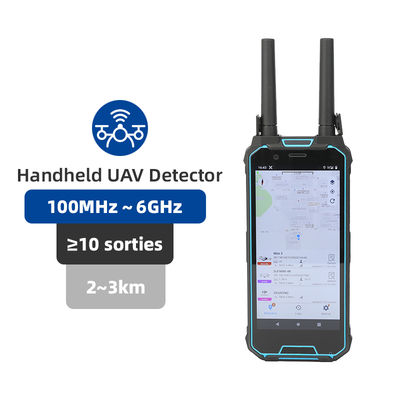

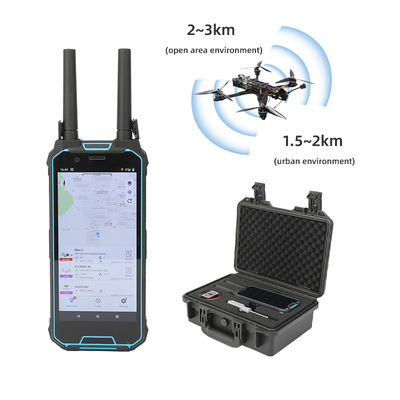

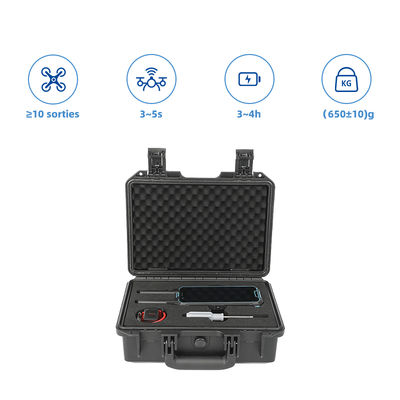

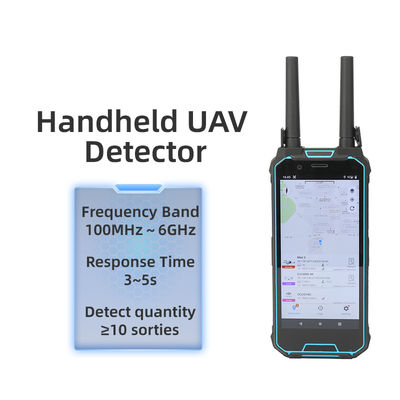

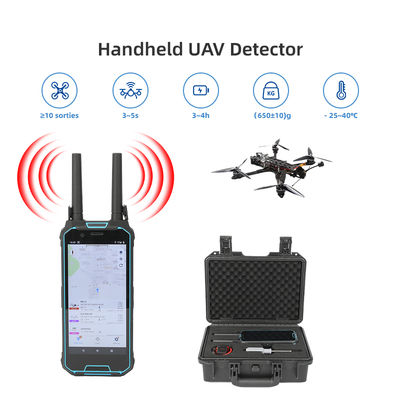

Product Images
