70MHz–6.2GHz UAV Detection System | FPV Live Video Monitoring, Real-Time Transmission Storage & 1+N Device Architecture for Anti-Drone System
| 원래 장소 | 심천 |
|---|---|
| 브랜드 이름 | Ladasky |
| 모델 번호 | LDSK-TZ-40D |
| 최소 주문 수량 | 1 |
| 가격 | $1810 |
| 배달 시간 | 5~8일 |
| 지불 조건 | L/C, D/A, T/T, D/P, 서부 동맹, |
| 공급 능력 | 5000pcs/월 |
무료 샘플과 쿠폰을 받으려면 연락하세요.
왓츠앱:0086 18588475571
웨이 채팅: 0086 18588475571
스카이프: sales10@aixton.com
궁금한 점이 있으시면 24시간 온라인 도움을 제공합니다.
x제품 상세 정보
| 전대역 감지 | 전체 70MHz~6.2GHz 범위를 감지할 수 있습니다. | 포괄적인 FPV 대역 범위 | 500MHz~6GHz 범위 내에서 아날로그 비디오 전송 감지를 완벽하게 지원합니다. |
|---|---|---|---|
| 비디오 가로채기 | 모든 아날로그 비디오 전송을 차단하여 FPV 침입 대상 및 실시간 역학에 대한 "1인칭 시점" 분석을 허용합니다. | 비디오 저장 | 실시간으로 캡쳐된 영상을 증거물로 저장할 수 있습니다. |
| 팀 협업 | 마스터-슬레이브 장치 설계를 갖춘 1+N 모드를 갖추고 있어 알람 연결 및 조율된 작동이 가능합니다. | 마스터-슬레이브 장치 설계의 1+N 모드를 갖추고 있어 알람 연결 및 조정 작동이 가능합니다. | 다양한 휴대 방법을 지원하는 다기능 손목 밴드가 함께 제공되어 사용이 간편합니다. |
| 강조하다 | 70MHz-6.2GHz UAV detection system,FPV live video monitoring drone detector,portable anti-drone system with real-time transmission |
||
제품 설명

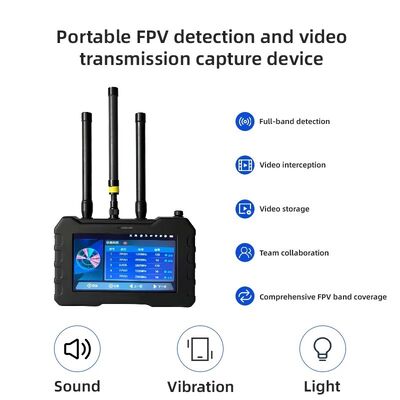

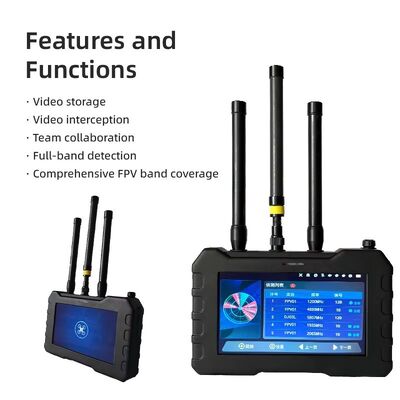

Portable Multi-Band Anti-Drone Detector
70MHz–6.2GHz Full-Band Handheld UAV Detection System with FPV Detection, Live Video Capture, and Real-Time Video Transmission Interception
Challenges in Signal-Dense Environments
In urban zones and event venues, drone signals are often overwhelmed by background RF noise, creating security vulnerabilities where conventional equipment fails to reliably detect targets.
Advanced Detection Solutions
- Intelligent Full-Band Detection: Covers 70MHz–6.2GHz spectrum with precise signal separation capabilities for reliable operation in cluttered RF environments
- Accurate Multi-Model Recognition: Built-in signature library identifies common commercial, DIY, and FPV drones in real time
Evidence Collection Capabilities
Traditional counter-drone methods only disperse threats without capturing evidence of intent, making legal accountability challenging.
- Real-Time Video Transmission Interception: Instantly captures and displays the drone pilot's live video feed in real time
- One-Click Evidence Archiving: Built-in storage automatically records timestamped video to establish complete evidence chains
- Master-Slave Coordinated Positioning: Multiple units network together to guide ground personnel in rapidly locating drone operators
Technical Specifications
| Identification Types | Supports mainstream drones including DJI, Autel, Hubsan, plus FPV racing drones and DIY drones |
|---|---|
| Frequency Range | Customizable scanning from 70 MHz to 6.2 GHz Default detection bands: 400 MHz, 800 MHz, 900 MHz, 1.2 GHz, 1.4 GHz, 2.4 GHz, 5.2 GHz, 5.8 GHz (other bands customizable) |
| FPV Video Transmission Detection | Supports all analog video transmissions within 500 MHz–6 GHz range (user-customizable) |
| Detection Radius | ≥ 1.5 km (line-of-sight, clean electromagnetic environment) |
| Video Capture Distance | ≥ 1.5 km (line-of-sight, clean electromagnetic environment) |
| Video Storage Capacity | ≥32 GB memory card, maximum 256GB |

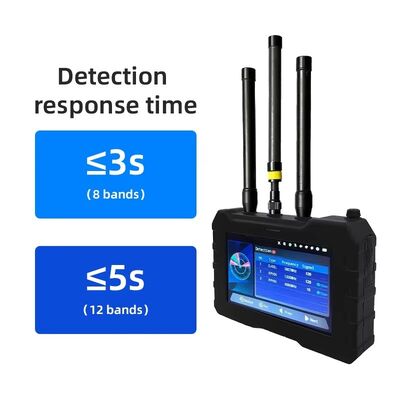

| Detection Response Time | ≤3s (8 bands); ≤5s (12 bands) |
| Battery Life | ≥5 hours (default screen brightness and operating mode) |
| Alarm Modes | Sound, vibration, and light |
| Screen Size | 7-inch touchscreen |
| Power Supply | Lithium battery powered |
| Battery Capacity | 7000mAh |
| Device Weight | ≤ 1.2kg |

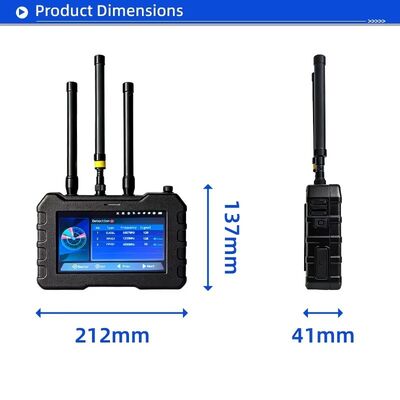

| Device Size | Length × Width × Height: 212mm × 137mm × 41mm |
Frequently Asked Questions
What is the effective detection distance of the device?
Under good visibility and clean electromagnetic environment, the detection radius for common drones is ≥ 1.5 kilometers, and video capture distance also reaches over 1.5 kilometers.
What drone brands and types does it support?
Supports mainstream brands including DJI, Autel, Hubsan, while covering various drone types such as FPV racing aircraft, DIY modified aircraft, and fixed wing aircraft.
How long is the device's battery life?
Built-in 7000mAh lithium battery provides ≥ 5 hours of operation under default screen brightness and working mode, with support for charging while using a power bank.
Can it be used in complex electromagnetic environments?
Yes. The device features intelligent signal sorting capability, effectively filtering out Wi-Fi, Bluetooth, and other interference while maintaining stable detection performance in complex electromagnetic environments such as urban areas and event sites.
How to store and export captured videos?
The device includes a built-in memory card (standard 32GB, maximum 256GB) with videos automatically stored by timestamp. Data can be directly exported via the Type-C port by connecting to a computer.
Does it support collaborative work among multiple users?
Yes. The device supports 1+N master-slave mode with optional wristwatch terminal for multi-machine alarm linkage, collaborative positioning, and task division, making it suitable for regional control and team operations.
How to maintain and upgrade the equipment?
Regular power-on self-checks are recommended to keep software current. The system supports firmware upgrades via Type-C connection to a computer, continuously updating the drone signature library and enhancing recognition capabilities.
