휴대용 드론 탐지기
Created with Pixso. LDK-YS01 Portable Backpack GNSS Drone Spoofer | Anti-Drone Navigation Deception

LDK-YS01 Portable Backpack GNSS Drone Spoofer | Anti-Drone Navigation Deception

브랜드 이름: LDSK
모델 번호: LDK-YS01
MOQ: 1
배달 시간: 영업일 기준 7일
지불 조건: T/T, L/C, D/A, D/P, 웨스턴 유니온, 페이팔, 알리바바
상세 정보
원래 장소:
중국 광동
지원되는 주파수:
BDS: B1I(1561.098MHz) GPS: L1C/A(1575.42MHz) GLONASS: L1(1598.0625~1605.375MHz) 갈릴레오: E1(1575.42MHz)
신호 전력:
10dBm 이하(맞춤형)
배터리 수명:
≥ 3H
전원 조정 범위:
≥20dB, 단계 ≤0.5dB
시작 시간:
50초 이하
장비 무게:
≤9kg
안테나 크기:
50mm
포장 세부 사항:
상자
공급 능력:
매월 5000
제품 설명
LDK-YS01 Portable Backpack GNSS Drone Navigation Spoofer | Mobile Anti-Drone Deception Equipment
Portable Backpack Design | >3h Working Time | 10s Fast Deception | Scalable Integrated Defense

Product Overview

The LDK-YS01 redefines mobile low-altitude security with its portable backpack-style drone navigation spoof design, specially crafted for countering small low-speed civilian drones in sensitive areas, critical infrastructure and mobile defense scenarios. This all-in-one GNSS deception device offers full coverage of GPS, BeiDou, Galileo and GLONASS—the four core global satellite navigation systems—and supports B3 positioning and timing, making it compatible with every mainstream civilian drone on the market for universal navigation spoofing. What sets it apart is its unbeatable speed and efficiency: 10-second deception intrusion, ≥90% success rate, and ultra-fast startup/preparation times, enabling instant countermeasures against unexpected drone intrusions. Its hybrid ephemeris mode breaks through traditional limitations, allowing normal operation even in GNSS signal-free areas, while the precise signal control (customizable power, fine adjustment step) adapts to diverse application scenarios. Designed for on-the-go use, the TTSK-YS01 weighs just ≤9kg with a compact backpack form factor, IP65 rugged protection, and a -20℃~+55℃ operating range for stable performance in all outdoor conditions. It also features a replaceable battery, dual power supply and >3h continuous working time for non-stop field operations. With high scalability, it seamlessly integrates with radar, spectrum detection and countermeasure guns to build a comprehensive integrated defense system, and its user-friendly operation with pre-set deception strategies reduces operator skill requirements, making it the perfect mobile anti-drone solution for both individual and large-scale deployment. solutions are required.

Key Features
  • Universal GNSS Compatibility: Full coverage of GPS, BeiDou, Galileo, GLONASS + B3 positioning/timing, works with all civilian small low-speed drones
  • Blazing-Fast Deception: 10s deception intrusion completion, ≥90% success rate, rapid neutralization of drone threats in sensitive areas
  • GNSS Signal-Free Operation: Hybrid ephemeris mode enables deception in GNSS-less environments, no signal coverage limitations
  • Portable Backpack Form: Lightweight (≤9kg), compact size (no antenna: 469.6×405.2×202.4mm), easy to carry for mobile/field defense

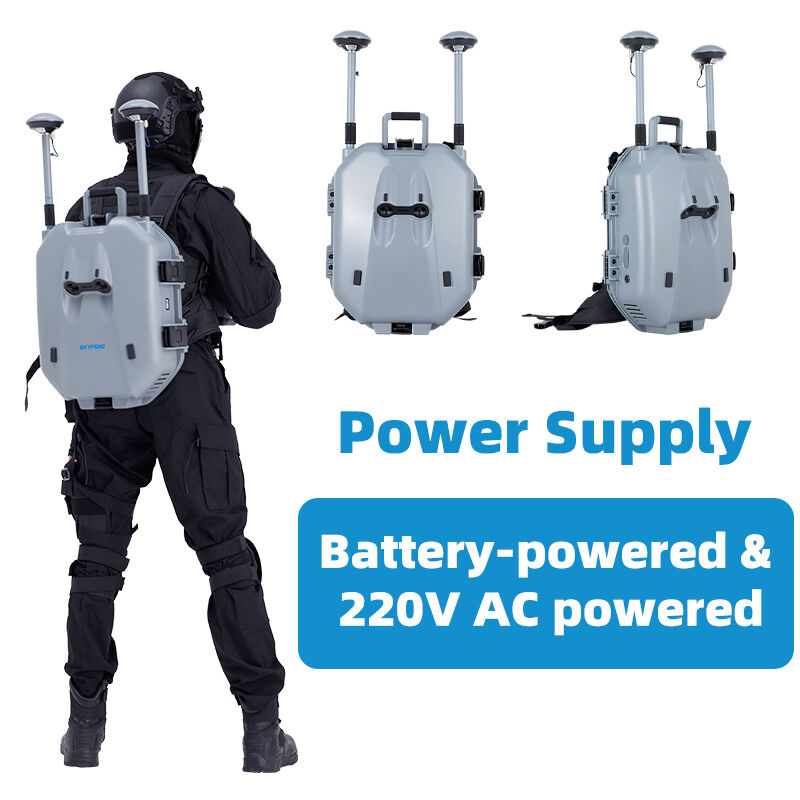

  • Long Continuous Working Time: >3h interference duration, replaceable battery + dual power supply (battery/220V AC) for non-stop operation
  • Rugged Outdoor Build: IP65 dustproof/waterproof, operates in -20℃~+55℃, durable for harsh field and outdoor working conditions
  • Precise Customizable Signal: Signal power ≤10dBm (customizable), power adjustment ≥20dB with ≤0.5dB step for flexible scenario adaptation
  • Seamless Deception Cycles: Induction cut-in ≤1s, induction interval ≤2s, no resynchronization needed for repeated deception attempts
  • High Scalability: Expandable command system, connects with radar/spectrum detection/countermeasure guns for integrated low-altitude defense
  • User-Friendly Operation: Multiple pre-configured deception strategies, simple setup, low operator skill requirement, large-scale reusable
  • Ultra-Fast Deployment: Startup time ≤50s, preparation time ≤5min, quick to deploy for emergency drone intrusion response

Product Images

LDK-YS01  Portable Backpack GNSS Drone Spoofer | Anti-Drone Navigation Deception 0

LDK-YS01  Portable Backpack GNSS Drone Spoofer | Anti-Drone Navigation Deception 1

LDK-YS01  Portable Backpack GNSS Drone Spoofer | Anti-Drone Navigation Deception 2

LDK-YS01  Portable Backpack GNSS Drone Spoofer | Anti-Drone Navigation Deception 3

LDK-YS01  Portable Backpack GNSS Drone Spoofer | Anti-Drone Navigation Deception 4

LDK-YS01  Portable Backpack GNSS Drone Spoofer | Anti-Drone Navigation Deception 5













Usage Scenarios

LDK-YS01  Portable Backpack GNSS Drone Spoofer | Anti-Drone Navigation Deception 6



Manufacturer Information

LDK-YS01  Portable Backpack GNSS Drone Spoofer | Anti-Drone Navigation Deception 7

LDK-YS01  Portable Backpack GNSS Drone Spoofer | Anti-Drone Navigation Deception 8

LDK-YS01  Portable Backpack GNSS Drone Spoofer | Anti-Drone Navigation Deception 9



LDK-YS01  Portable Backpack GNSS Drone Spoofer | Anti-Drone Navigation Deception 10




FAQ

Q1: How long does the TTSK-YS01 take to complete drone navigation deception?


A1: The device can complete the entire deception intrusion process in just 10 seconds, with an ultra-fast response to counter sudden drone intrusions in sensitive areas.

Q2: Can I adjust the signal power of the TTSK-YS01 for different scenarios?


A2: Yes. The signal power is ≤10dBm and fully customizable, with a power adjustment range of ≥20dB and a fine adjustment step of ≤0.5dB, adapting to various application distances and scenarios.

Q3: What is the operating time of the TTSK-YS01 and is the battery replaceable?


A3: The continuous interference working time is more than 3 hours, the built-in battery is replaceable for extended use, and it also supports 220V AC power supply for fixed-site operation.

Q4: Does the TTSK-YS01 require complex operation and professional skills?


A4: No. It is pre-loaded with multiple deception strategies with simple configuration steps, which greatly reduces the impact of operator skill level on deception effectiveness and is suitable for large-scale reuse.

Q5: Can the TTSK-YS01 work continuously for repeated drone deception attempts?


A5: Yes. The interval between two deception inductions is ≤2s, the induction signal cut-in time is ≤1s, and no resynchronization or timing adjustment is needed between attempts for seamless continuous operation.

Q6: What is the antenna size of the TTSK-YS01 and how is it installed?


A6: The antenna size is 50mm, with a compact design that is easy to assemble and disassemble with the main device, and the backpack form factor ensures convenient carrying and deployment.

Q7: What scenarios is the TTSK-YS01 suitable for?


A7: It is specially designed for low-altitude security defense in sensitive areas, critical infrastructure, military outposts, large event venues, and is also ideal for mobile/field anti-drone operations due to its backpack design.

Q8: How does the TTSK-YS01 achieve integrated anti-drone defense with other equipment?


A8: Its command and control system has high scalability, which can be connected to radar, spectrum detection equipment, countermeasure guns and other soft/hard attack devices to achieve targeted decoy and drone neutralization effects.
